Silverlight - Popup
This class displays the content on top of the existing content, within the bounds of the application window. It is a temporarily display on the other content. The hierarchical inheritance of Popup class is as follows −
Given below are commonly used properties of Popup class.
Sr. No. | Property & Description |
---|---|
1 | Child Gets or sets the content to be hosted in the popup. |
2 | ChildProperty Gets the identifier for the Child dependency property. |
3 | ChildTransitions Gets or sets the collection of Transition style elements that apply to child content of a Popup. |
4 | ChildTransitionsProperty Identifies the ChildTransitions dependency property. |
5 | HorizontalOffset Gets or sets the distance between the left side of the application window and the left side of the popup. |
6 | HorizontalOffsetProperty Gets the identifier for the HorizontalOffset dependency property. |
7 | IsLightDismissEnabled Gets or sets a value that determines how the Popup can be dismissed. |
8 | IsLightDismissEnabledProperty Identifies the IsLightDismissEnabled dependency property. |
9 | IsOpen Gets or sets whether the popup is currently displayed on the screen. |
10 | IsOpenProperty Gets the identifier for the IsOpen dependency property. |
11 | VerticalOffset Gets or sets the distance between the top of the application window and the top of the popup. |
12 | VerticalOffsetProperty Gets the identifier for the VerticalOffset dependency property. |
Popup class has the following events.
Sr. No. | Event & Description |
---|---|
1 | Closed Fires when the IsOpen property is set to false. |
2 | Opened Fires when the IsOpen property is set to true. |
A simple example is given below, in which a Popup control and a CheckBox is created and initialized. When a user checkes the CheckBox it displays a Popup.
<UserControl x:Class = "Popup.MainPage" xmlns = "http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x = "http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d = "http://schemas.microsoft.com/expression/blend/2008" xmlns:mc = "http://schemas.openxmlformats.org/markup-compatibility/2006" mc:Ignorable = "d" d:DesignHeight = "300" d:DesignWidth = "400"> <Grid x:Name = "LayoutRoot" Background = "White"> <CheckBox Name = "PCheckBox" Margin = "0,100,296,172" Content = "Checked Me"/> <Popup IsOpen = "{Binding ElementName = PCheckBox,Path = IsChecked}"> <Canvas Width = "125" Height = "100" Background = "LightGray"> <Canvas.RenderTransform> <RotateTransform x:Name = "theTransform" /> </Canvas.RenderTransform> <TextBlock TextWrapping = "Wrap" Foreground = "Blue" Text = "Hi, this is Popup"/> </Canvas> </Popup> </Grid> </UserControl>

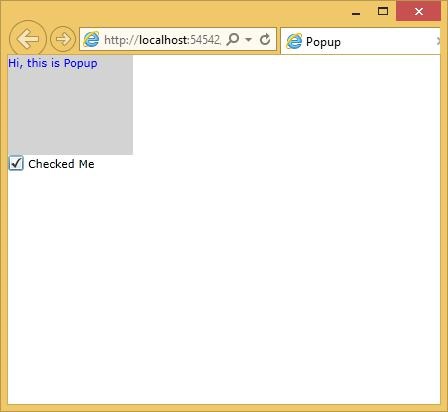

When the above code is compiled and executed, you will see the following output. When you check the checkbox box, it will display the popup.
