How can box and whisker plot be used to compare the data in different categories in Python Seaborn?

A box and whisker plot is an effective visualization technique in Python Seaborn for comparing data distributions across different categories. Unlike scatter plots that show individual data points, box plots provide a comprehensive view of data distribution using quartiles, making it easy to compare multiple categories at once.

Understanding Box Plots

Box plots display data distribution through five key statistics: minimum, first quartile (Q1), median (Q2), third quartile (Q3), and maximum. The "box" represents the interquartile range (IQR), while "whiskers" extend to show the data range. Outliers appear as individual points beyond the whiskers.

Syntax

seaborn.boxplot(x=None, y=None, data=None, hue=None, order=None, palette=None)

Basic Box Plot Example

Let's create a box plot to compare petal lengths across different iris species ?

import pandas as pd
import seaborn as sb
from matplotlib import pyplot as plt

# Load the iris dataset
iris_data = sb.load_dataset('iris')
print(iris_data.head())

   sepal_length  sepal_width  petal_length  petal_width species
0           5.1          3.5           1.4          0.2  setosa
1           4.9          3.0           1.4          0.2  setosa
2           4.7          3.2           1.3          0.2  setosa
3           4.6          3.1           1.5          0.2  setosa
4           5.0          3.6           1.4          0.2  setosa

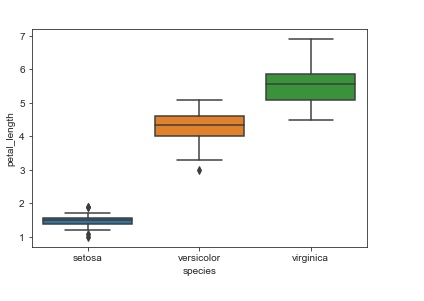

import pandas as pd
import seaborn as sb
from matplotlib import pyplot as plt

# Load the iris dataset
iris_data = sb.load_dataset('iris')

# Create box plot
plt.figure(figsize=(8, 6))
sb.boxplot(x="species", y="petal_length", data=iris_data)
plt.title('Petal Length Distribution by Species')
plt.show()

Grouped Box Plots with Hue Parameter

You can add another categorical variable using the hue parameter for more detailed comparisons ?

import pandas as pd
import seaborn as sb
from matplotlib import pyplot as plt

# Load tips dataset for demonstration
tips_data = sb.load_dataset('tips')

# Create grouped box plot
plt.figure(figsize=(10, 6))
sb.boxplot(x="day", y="total_bill", hue="time", data=tips_data)
plt.title('Total Bill Distribution by Day and Time')
plt.show()

Horizontal Box Plot

Swap x and y parameters to create horizontal box plots ?

import pandas as pd
import seaborn as sb
from matplotlib import pyplot as plt

# Load iris dataset
iris_data = sb.load_dataset('iris')

# Create horizontal box plot
plt.figure(figsize=(8, 6))
sb.boxplot(x="petal_length", y="species", data=iris_data)
plt.title('Horizontal Box Plot: Petal Length by Species')
plt.show()

Key Features of Box Plots

Advantages of Box Plots

• Easy comparison of multiple categories
• Clear identification of outliers
• Shows data distribution shape and skewness
• Compact visualization of five-number summary
• Effective for large datasets

Conclusion

Box and whisker plots in Seaborn are powerful tools for comparing data distributions across categories. They provide a comprehensive view of data spread, central tendency, and outliers, making them ideal for exploratory data analysis and statistical comparisons.
