What is Content Negotiation in Asp.Net webAPI C#?

Content negotiation in ASP.NET Web API is the process of selecting the best format for the response based on what the client can accept. When a client sends a request, it can specify its preferred response format using HTTP headers, and the server responds accordingly.

The primary mechanism for content negotiation relies on several HTTP request headers that communicate the client's preferences to the server.

HTTP Headers for Content Negotiation

Accept − Specifies which media types are acceptable for the response, such as "application/json," "application/xml," or custom media types like "application/vnd.example+xml".

Accept-Charset − Indicates which character sets are acceptable, such as UTF-8 or ISO 8859-1.

Accept-Encoding − Specifies which content encodings are acceptable, such as gzip.

Accept-Language − Defines the preferred natural language, such as "en-us".

The server can also examine other parts of the HTTP request. For example, if the request contains an X-Requested-With header indicating an AJAX request, the server might default to JSON if no Accept header is present.

How Content Negotiation Works

In the content negotiation pipeline, ASP.NET Web API uses the IContentNegotiator service from the HttpConfiguration object and retrieves the list of media formatters from the HttpConfiguration.Formatters collection.

The pipeline calls IContentNegotiator.Negotiate, passing in −

• The type of object to serialize
• The collection of media formatters
• The HTTP request

The Negotiate method returns two pieces of information −

• Which formatter to use
• The media type for the response

If no formatter is found, the Negotiate method returns null, and the client receives HTTP error 406 (Not Acceptable).

Example Implementation

Let us consider a simple StudentController to demonstrate content negotiation −

using System;
using System.Collections.Generic;
using System.Web.Http;

namespace DemoWebApplication.Controllers
{
    public class StudentController : ApiController
    {
        List<Student> students = new List<Student>
        {
            new Student
            {
                Id = 1,
                Name = "Mark"
            },
            new Student
            {
                Id = 2,
                Name = "John"
            }
        };

        public IHttpActionResult GetStudents()
        {
            return Ok(students);
        }
    }
}

public class Student
{
    public int Id { get; set; }
    public string Name { get; set; }
}

class Program
{
    static void Main(string[] args)
    {
        Console.WriteLine("StudentController configured for content negotiation");
        Console.WriteLine("Supports both JSON and XML formats based on Accept header");
    }
}

The output of the above code is −

StudentController configured for content negotiation
Supports both JSON and XML formats based on Accept header

Accept Header Examples

The client can specify different formats using the Accept header −

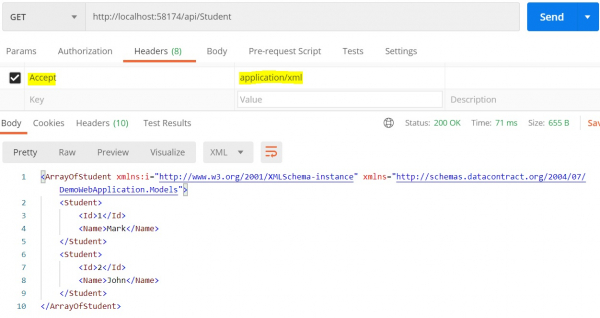

Accept: application/xml returns XML

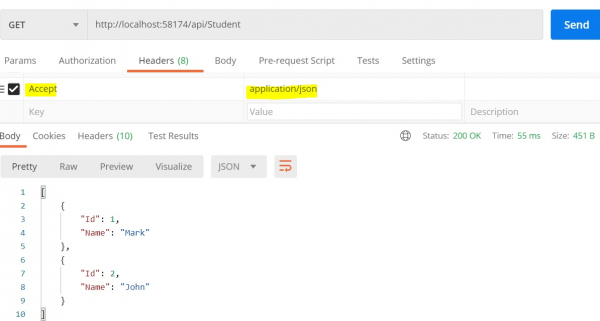

Accept: application/json returns JSON

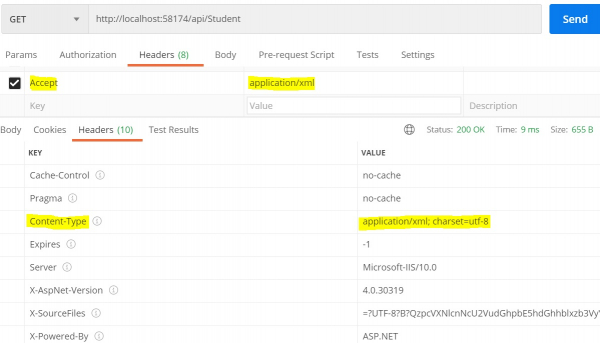

When the response is sent to the client in the requested format, the Content-Type header of the response is set to the appropriate value. For example, if the client requests application/xml, the server sends the data in XML format and sets Content-Type=application/xml.

Quality Factors

You can specify quality factors (q-values) to indicate preference order. Quality factors range from 0 to 1, where 1 indicates the highest preference −

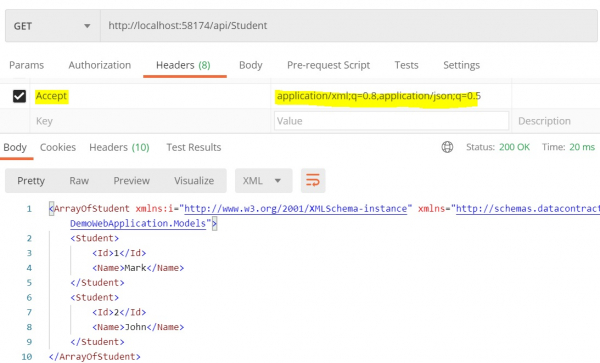

Accept: application/xml;q=0.8,application/json;q=0.5

In this example, XML has a higher quality factor (0.8) than JSON (0.5), so the server uses the XML formatter and responds with XML data.

Custom Media Types

You can also work with custom media types by creating custom formatters −

using System;
using System.Web.Http;

public class CustomApiController : ApiController
{
    public IHttpActionResult GetData()
    {
        var data = new { Message = "Hello World", Timestamp = DateTime.Now };
        return Ok(data);
    }
}

class Program
{
    static void Main(string[] args)
    {
        Console.WriteLine("Custom media types example:");
        Console.WriteLine("Accept: application/vnd.mycompany+json");
        Console.WriteLine("Accept: application/vnd.mycompany+xml");
    }
}

The output of the above code is −

Custom media types example:
Accept: application/vnd.mycompany+json
Accept: application/vnd.mycompany+xml

Conclusion

Content negotiation in ASP.NET Web API allows clients to specify their preferred response format through HTTP headers. The server automatically selects the appropriate formatter based on the Accept header and available media formatters, enabling flexible API responses that can serve both JSON and XML formats seamlessly.
