What are the roles of the user interface and kernel of an operating system?

An operating system consists of two main components that work together to provide a complete computing environment: the user interface and the kernel. These components have distinct roles and operate in different execution modes to ensure system security and efficient resource management.

Execution Modes

Programs execute in two distinct modes to maintain system security and stability:

• User mode − Applications run with restricted privileges and cannot directly access hardware resources. The mode bit is set to 1.

• Kernel mode − The OS runs with full privileges and can access all hardware resources like RAM, storage devices, and I/O ports.

The processor switches between these modes based on the type of code being executed. When a user application needs hardware resources, it must make a system call to request services from the kernel, which temporarily switches the system to kernel mode.

Roles of User Interface and Kernel

User Interface

The user interface (UI) acts as an intermediary between applications and users, facilitating communication and interaction. It serves two primary functions: accepting user inputs and presenting outputs in a comprehensible format.

User interfaces are classified into two main categories:

• Graphical User Interface (GUI) − Provides visual elements like windows, icons, menus, and buttons for intuitive interaction.

• Command Line Interface (CLI) − Requires users to enter specific commands and codes to perform operations.

Kernel

The kernel is the core component of an operating system, often called the "heart" of the computer. It serves as a bridge between user-level applications and hardware resources, managing critical system functions including:

• Process management − Creating, scheduling, and terminating processes

• Memory management − Allocating and deallocating memory space

• File system management − Handling file operations and storage

• Device management − Controlling hardware devices through device drivers

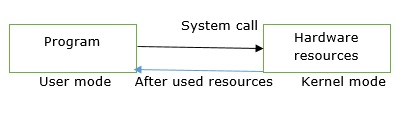

System Call Mechanism

When a user application requires hardware resources, it cannot access them directly due to security restrictions. Instead, it makes a system call − a programmatic request to the kernel for specific services. The system call process involves:

1. Application identifies need for hardware resource

2. System call switches from user mode to kernel mode

3. Kernel processes the request and accesses hardware

4. System returns to user mode with results

Conclusion

The user interface and kernel work together to provide a secure and efficient computing environment. The user interface enables intuitive human-computer interaction, while the kernel manages system resources and maintains security through controlled access mechanisms. This separation ensures system stability while providing users with powerful computing capabilities.
