How to set X-axis values in Matplotlib Python?
To set X-axis values in matplotlib in Python, we can take the following steps −
Create two lists for x and y data points.
Get the xticks range value.
Plot a line using plot() method with xtick range value and y data points.
Replace xticks with X-axis value using xticks() method.
To display the figure, use show() method.
Example
from matplotlib import pyplot as plt plt.rcParams["figure.figsize"] = [7.00, 3.50] plt.rcParams["figure.autolayout"] = True x = [45, 1, 34, 78, 100] y = [8, 10, 23, 78, 2] default_x_ticks = range(len(x)) plt.plot(default_x_ticks, y) plt.xticks(default_x_ticks, x) plt.show()

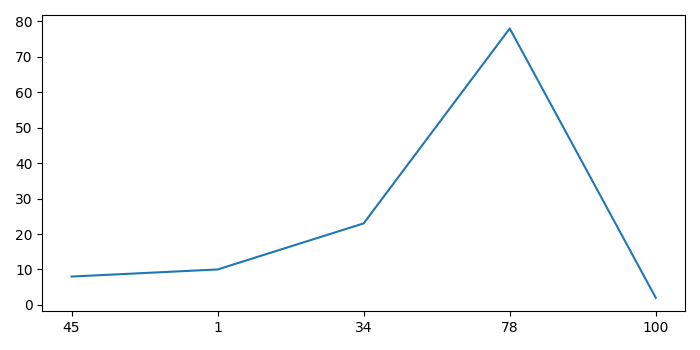

Output
